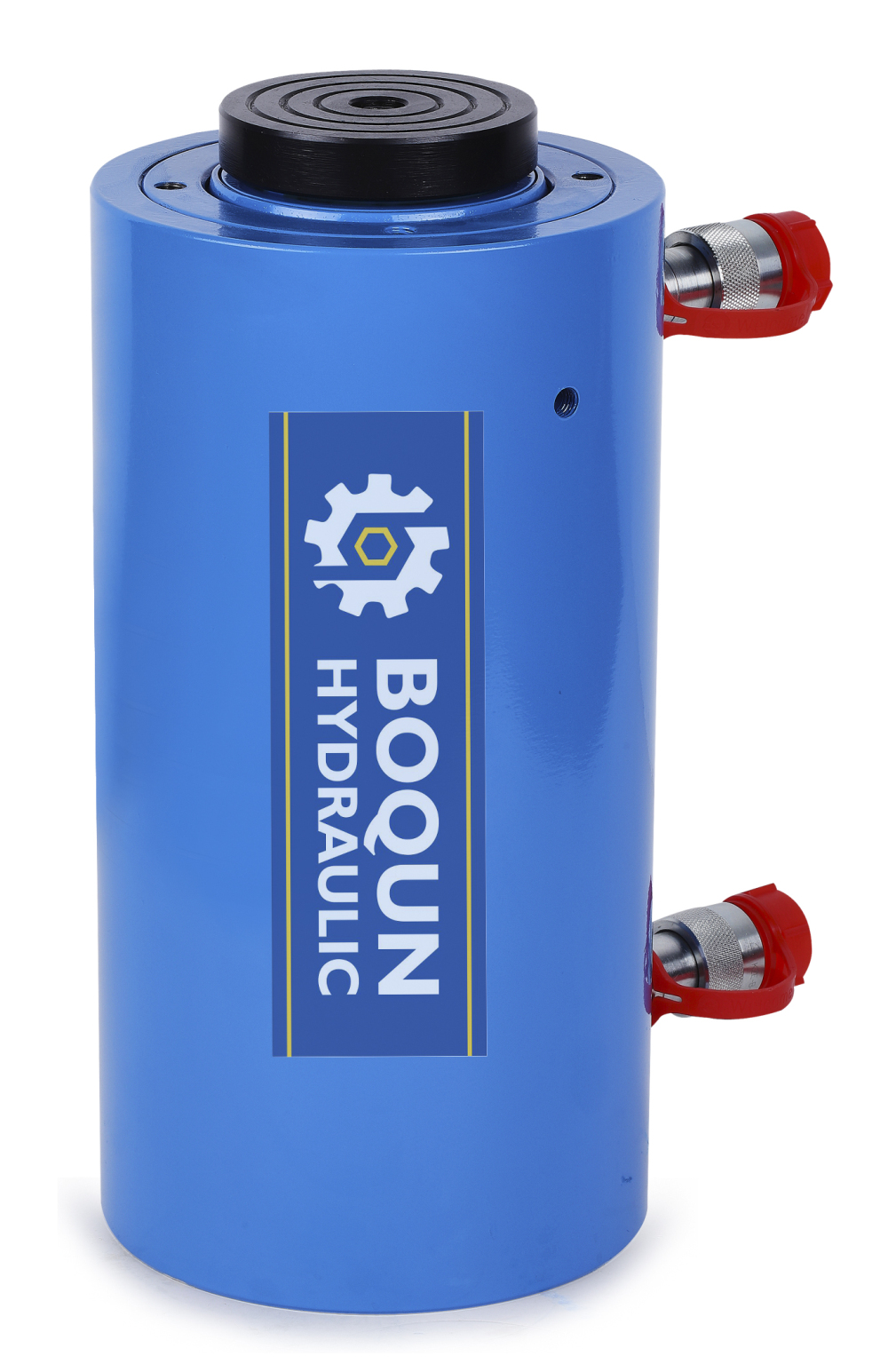

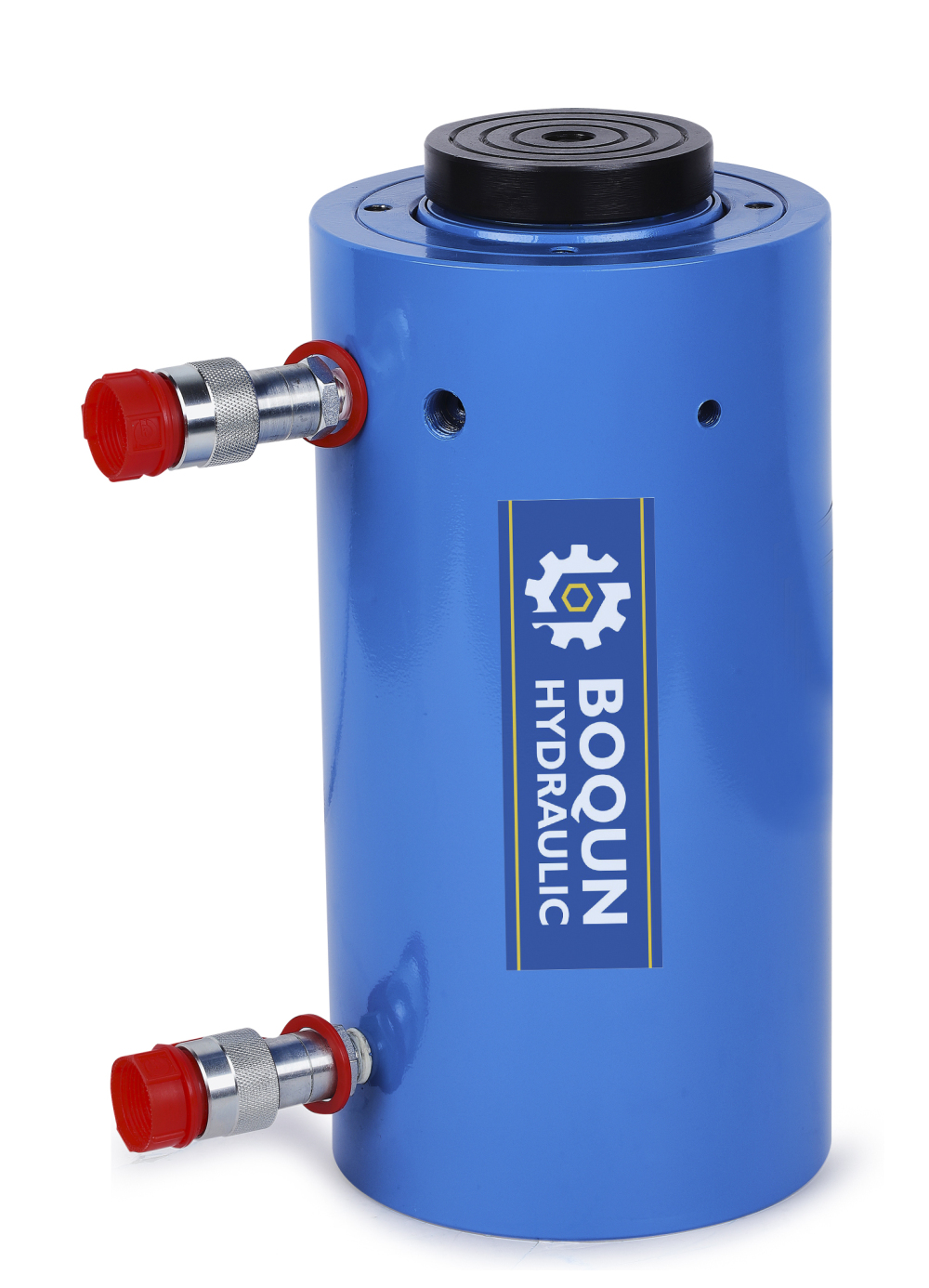

Hydraulic Cylinders_Boqun Hydraulic

Features

1.Double acting, for positive retraction.

2. Built-in safety valve prevents accidental over-pressurization.

3. Hard chrome plated high quality steel plungers.

4. Removable hardened saddles protect plunger during lifting and pressing.

5.Special painted surface to increase corrosion resistance.

6. Plunger wiper reduces contamination, extending cylinder life.

7. The exclusive guide ring is designed absorbs eccentric loading without galling cylinder parts.

8. All model include quick couplings and dust-proof cap.

9. Easy fixturing with base mounting holes.

10. According to different work environment, special cylinder could be customized.

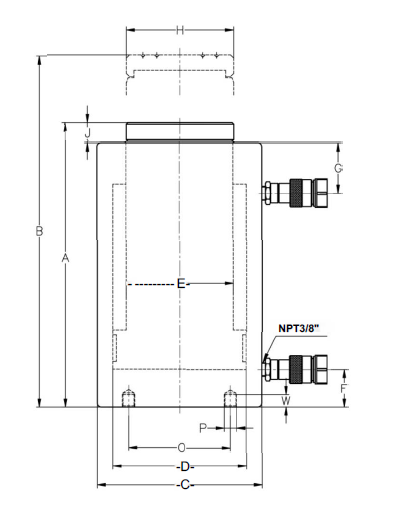

Cylinder Capacity	Stroke	Model Number	Max. Cylinder Capacity		Oil Capacity		Collapsed height	Extend Height	Outside Dia.	Cylinder Bore Dia.	Plunger Dia.	Weight
			Max. Cylinder Capacity		Oil Capacity		Collapsed height	Extend Height	Outside Dia.	Cylinder Bore Dia.	Plunger Dia.
			Advance	Retract	Advance	Retract	A	B	C	D	E
ton	(mm)		(KN)		(cm³)		(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
50	50	CLRG-502	550	255	392	200	188	238	140	100	70	21.5
	100	CLRG-504	550	255	784	400	238	338	140	100	70	26
	150	CLRG-506	550	255	1176	600	288	438	140	100	70	31
	200	CLRG-508	550	255	1568	800	338	538	140	100	70	35
	300	CLRG-5012	550	255	2352	1200	438	738	140	100	70	44
100	50	CLRG-1002	1077	490	770	377	216	266	188	140	100	42
	100	CLRG-1004	1077	490	1540	754	266	366	188	140	100	49
	150	CLRG-1006	1077	490	2310	1131	316	466	188	140	100	56
	200	CLRG-1008	1077	490	3080	1508	366	566	188	140	100	63
	300	CLRG-10012	1077	490	4620	2262	466	766	188	140	100	70
150	50	CLRG-1502	1588	797	1134	565	226	276	228	170	120	66
	100	CLRG-1504	1588	797	2269	1130	276	376	228	170	120	78
	150	CLRG-1506	1588	797	3403	1696	326	476	228	170	120	90
	200	CLRG-1508	1588	797	4538	2260	376	576	228	170	120	102
	300	CLRG-15012	1588	797	6806	3390	476	776	228	170	120	126
200	100	CLRG-2004	2198	875	3141	1374	296	396	268	200	150	109
	150	CLRG-2006	2198	875	4712	2061	346	496	268	200	150	121
	200	CLRG-2008	2198	875	6282	2748	396	596	268	200	150	132
	300	CLRG-20012	2198	875	9423	4122	496	796	268	200	150	155
300	100	CLRG-3004	3434	1654	4906	2363	327	427	320	250	180	180
	200	CLRG-3008	3434	1654	9812	4726	427	627	320	250	180	220
	300	CLRG-30012	3434	1654	14718	7089	527	827	320	250	180	260
400	100	CLRG-4004	4308	1649	6154	2355	355	455	360	280	210	255
	200	CLRG-4008	4308	1649	12308	4710	455	655	360	280	210	310
	300	CLRG-40012	4308	1649	18462	7065	555	855	360	280	210	375
500	100	CLRG-5004	5114	1948	8038	3133	375	475	420	320	250	326
	200	CLRG-5008	5114	1948	16076	6266	475	675	420	320	250	394
	300	CLRG-5012	5114	1948	24114	9399	575	875	420	320	250	462
600	100	CLRG-6004	6300	2488	10174	4019	436	536	500	360	280	542
	200	CLRG-6008	6300	2488	20348	8038	536	736	500	360	280	634
	300	CLRG-60012	6300	2488	30522	12057	636	936	500	360	280	726
800	100	CLRG-8004	8000	2880	12566	4522	477	577	550	400	320	796
	200	CLRG-8008	8000	2880	25132	9044	577	777	550	400	320	944
	300	CLRG-80012	8000	2880	37698	13566	677	977	550	400	320	1092
