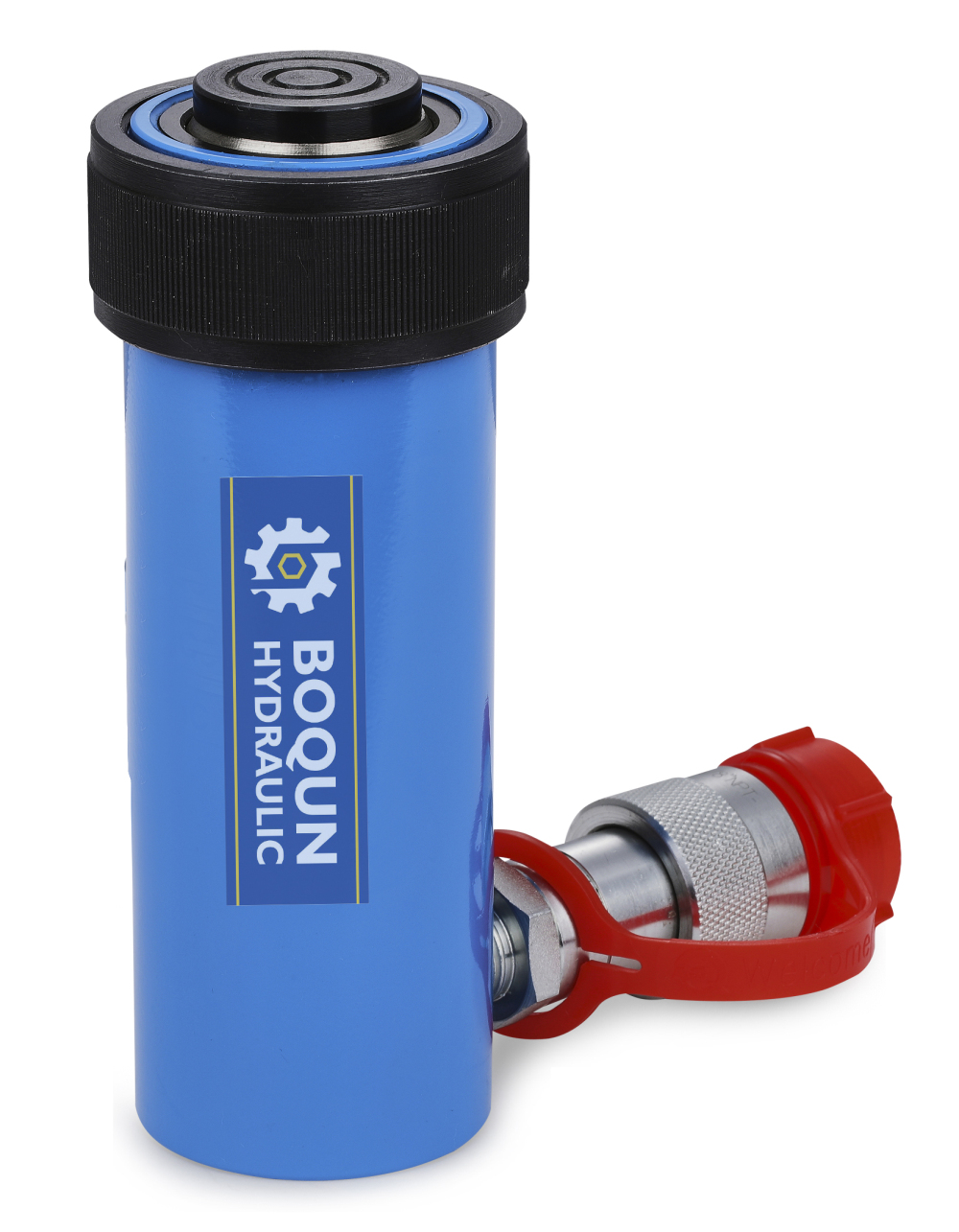

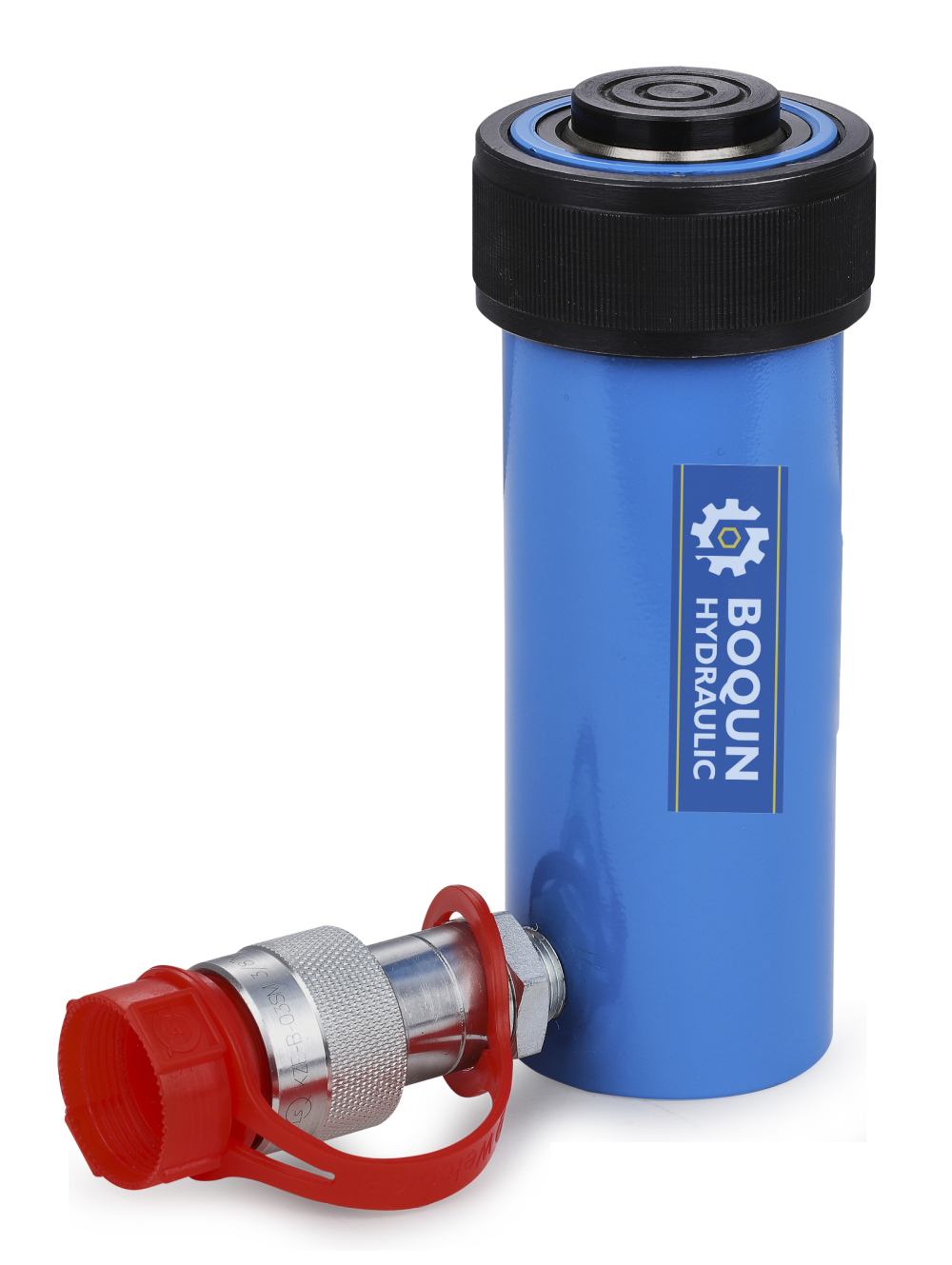

Features

1.Single-acting, spring return.

2..High strength alloy steel for durability.

3.The exclusive guide Ring is designed absorbs eccentric loading without galling cylinder parts.

4.Special painted surface to increase corrosion resistance.

5. Easy fixturing with collar threads, plunger threads and base mounting holes.

6. Removable hardened grooved saddle.

7. All models include quick coupling and dust cap.

8. Customizable with special requirement.

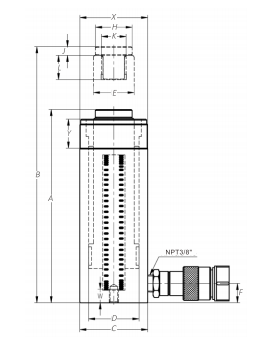

Cylinder Capacity	Stroke	Model Number	Oil Capacity	Collapsed height	Extended Height	Outside Dia.	Cylinder Bore Dia.	Plunger Dia.	Weight
				Collapsed height	Extended Height	Outside Dia.	Cylinder Bore Dia.	Plunger Dia.
				A	B	C	D	E
ton(KN)	(mm)		(cm³)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
5 (45)	25	RC-51	18	110	135	40	30	25	1
	76	RC-53	54	165	241	40	30	25	1.6
	127	RC-55	90	215	342	40	30	25	2
	177	RC-57	125	273	450	40	30	25	2.6
	232	RC-59	164	323	555	40	30	25	3.1
10 (101)	54	RC-102	86	121	175	59	45	35	2.3
	105	RC-104	167	171	276	59	45	35	3
	156	RC-106	248	247	403	59	45	35	4.1
	203	RC-108	323	298	501	59	45	35	5.8
	257	RC-1010	409	349	606	59	45	35	6.6
	304	RC-1012	483	400	707	59	45	35	7.5
	356	RC-1014	566	450	806	59	45	35	8.3
15 (142)	25	RC-151	53	124	149	70	52	42	3.5
	51	RC-152	108	149	200	70	52	42	4
	101	RC-154	214	200	301	70	52	42	5
	152	RC-156	323	271	423	70	52	42	7
	203	RC-158	431	322	525	70	52	42	8
	254	RC-1510	539	373	627	70	52	42	9
	305	RC-1512	647	423	728	70	52	42	10
	356	RC-1514	756	474	830	70	52	42	11
25 (232)	26	RC-251	86	139	165	85	65	56	6
	50	RC-252	166	165	215	85	65	56	7
	102	RC-254	338	215	317	85	65	56	8
	158	RC-256	524	273	431	85	65	56	10
	210	RC-258	696	323	533	85	65	56	12
	261	RC-2510	866	374	635	85	65	56	14
	311	RC-2512	1031	425	736	85	65	56	15
	362	RC-2514	1201	476	838	85	65	56	17
30 (295)	50	RC-302	209	228	278	101	73	60	13
	100	RC-304	418	278	378	101	73	60	16
	209	RC-308	874	387	596	101	73	60	19
	300	RC-3012	1255	478	778	101	73	60	27
50 (498)	51	RC-502	361	176	227	127	95	80	15
	101	RC-504	716	227	328	127	95	80	19
	159	RC-506	1126	282	441	127	95	80	23
	337	RC-5013	2388	460	797	127	95	80	37
75 (718)	156	RC-756	1620	285	441	150	115	100	33
75 (718)	333	RC-7513	3457	492	825	150	115	100	54
95 (933)	168	RC-1006	2229	357	525	177	130	112	59
95 (933)	260	RC-10010	3449	449	709	177	130	112	72
*RC50, RC75 and RC100 cylinder have no internal thread.

FAQ

Q1. How about your quality?

A1: We promise to refund full payment in case of quality after get back products.

Q2: How about the warranty?

A2: 1 year warranty for all products.

Q3: If you have professional R&D team?

A3: Yes, we will offer technical supporting.

Q4: How about your service?

A4: 1) Boqun promised to reply every question within 10 hours.

2) 7*24 hours

Q5: If you show order process to us?

A5: Of course, we always offer order status to our every customer on time.

Q6: What is your payment terms?

A6: 1) 100% payment before production for small order

2) 30% deposit before produciton, 70% balance against BL copy.

Q7: How long your production time?

A7: 1) Ship goods within 1-2 working days for stock products

2) Ship goods within 3-4 working days for sample.

3) 7-15 working days for batch order.(Special orders will be discussed before payment).
