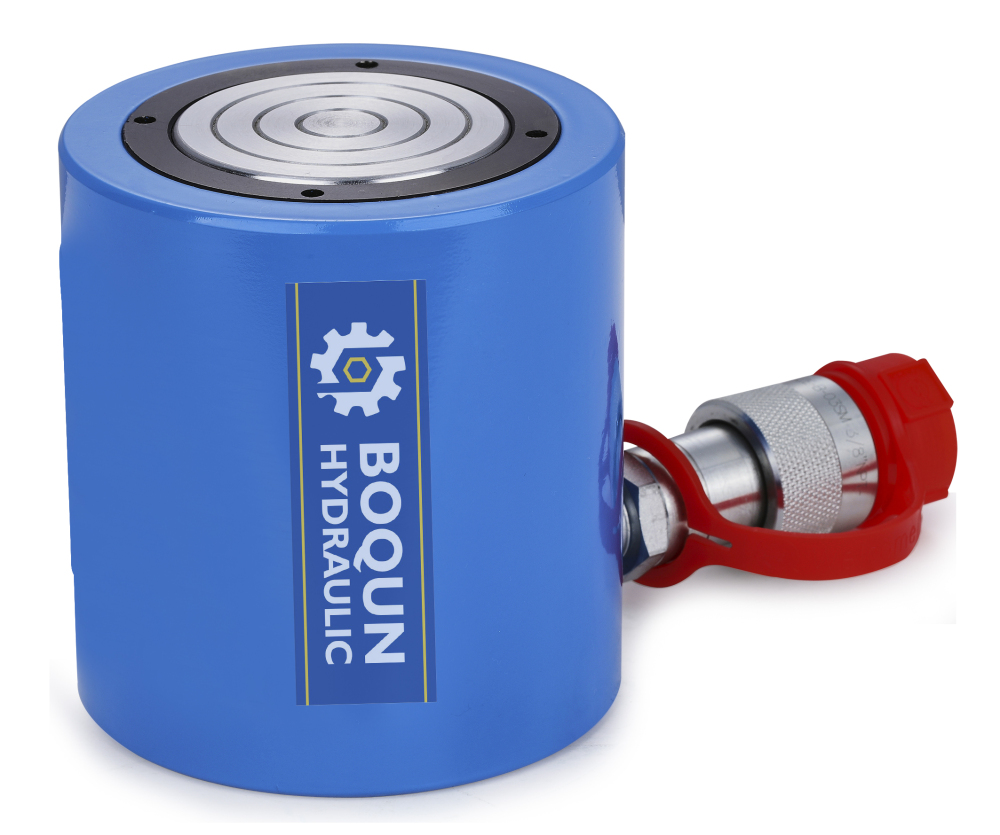

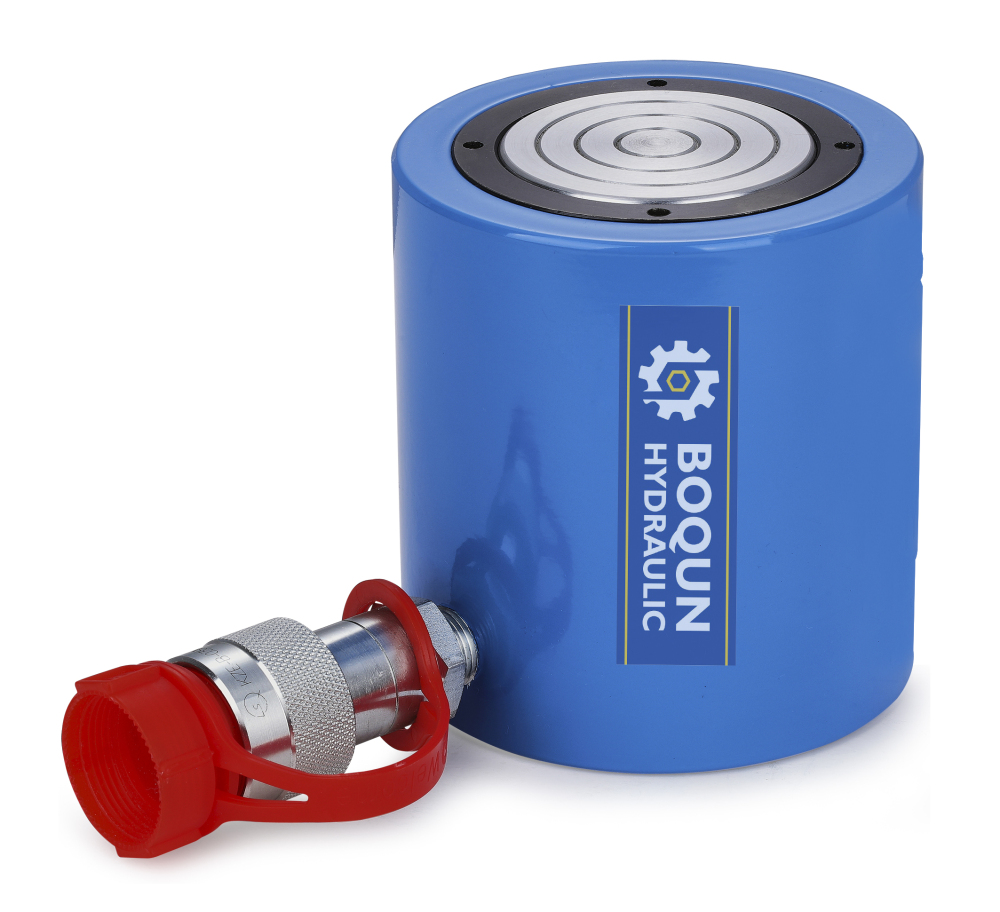

Low Profile Cylinders
Features
1.Single-acting, spring return.
2. No saddle required with grooved plunger end.
3. Two plunger threads on grooved plunder end for particular needs.
4.Special painted surface to increase corrosion resistance.
5. All models include quick coupling and dust cap.
6. Flat design used in confined spaces.
7. Easy carrying with handles on some models
(Capacity over 75tons).
8. Customizable with special requirement.
| Cylinder Capacity | Stroke | Model Number | Oil Capacity | Collapsed Height | Extend height | Outside Dia. | Cylinder Bore Dia. | Plunger Dia. | Base to Advance port | Saddle Protrusion from Plunger | Plunger to Base | Plunger to Mounting Hole | Weight |

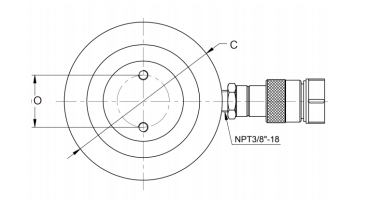

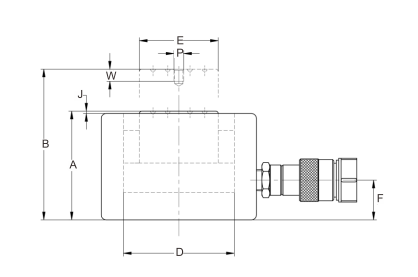

| A | B | C1XC2 | D | E | F | J | M | N | |||||
| ton(KN) | (mm) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| 30(295) | 64 | RCS-302 | 290 | 117 | 181 | 109 | 76 | 60 | 19 | 2 | \ | \ | 9.8 |
| 50(549) | 60 | RCS-502 | 471 | 120 | 180 | 233 | 100 | 80 | 21 | 2 | \ | \ | 13.3 |
| 75(718) | 50 | RCS-752 | 584 | 116 | 166 | 157 | 122 | 100 | 21 | 2 | \ | \ | 19 |
| 100(887) | 57 | RCS-1002 | 877 | 141 | 198 | 178 | 140 | 112 | 31 | 2 | \ | \ | 24.5 |
| 150(1386) | 51 | RCS-1502 | 1184 | 141 | 192 | 215 | 170 | 145 | 28 | 2 | \ | \ | 42 |
| 150(1386) | 80 | RCS-1504 | 1860 | 170 | 250 | 215 | 170 | 145 | 28 | 2 | \ | \ | 50 |
FAQ
Q1. How about your quality?
A1: We promise to refund full payment in case of quality after get back products.
Q2: How about the warranty?
A2: 1 year warranty for all products.
Q3: If you have professional R&D team?
A3: Yes, we will offer technical supporting.
Q4: How about your service?
A4: 1) Boqun promised to reply every question within 10 hours.
2) 7*24 hours
Q5: If you show order process to us?
A5: Of course, we always offer order status to our every customer on time.
Q6: What is your payment terms?
A6: 1) 100% payment before production for small order
2) 30% deposit before produciton, 70% balance against BL copy.
Q7: How long your production time?
A7: 1) Ship goods within 1-2 working days for stock products
2) Ship goods within 3-4 working days for sample.
3) 7-15 working days for batch order.(Special orders will be discussed before payment).
