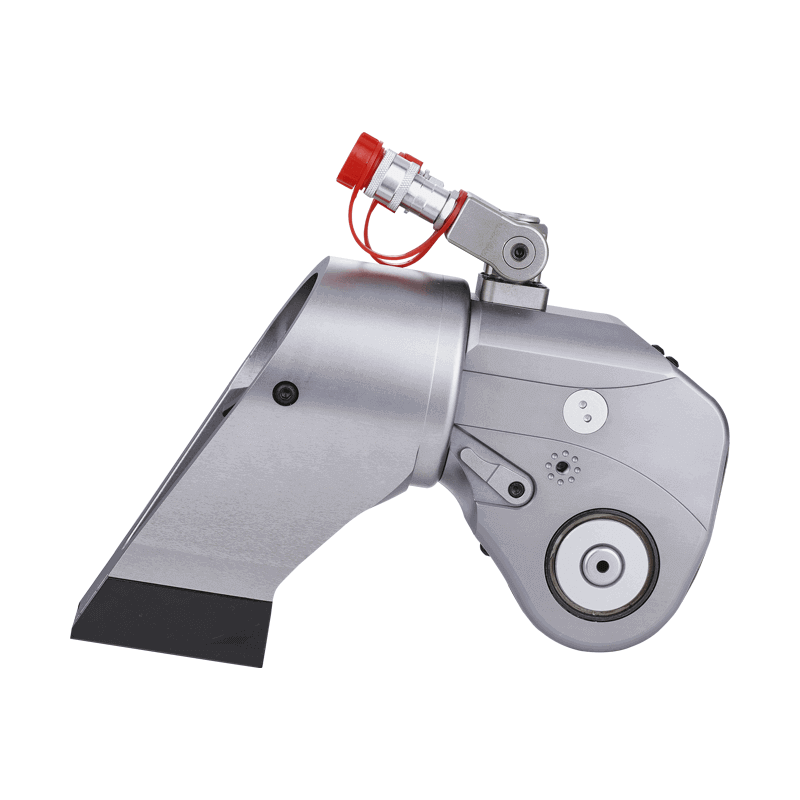

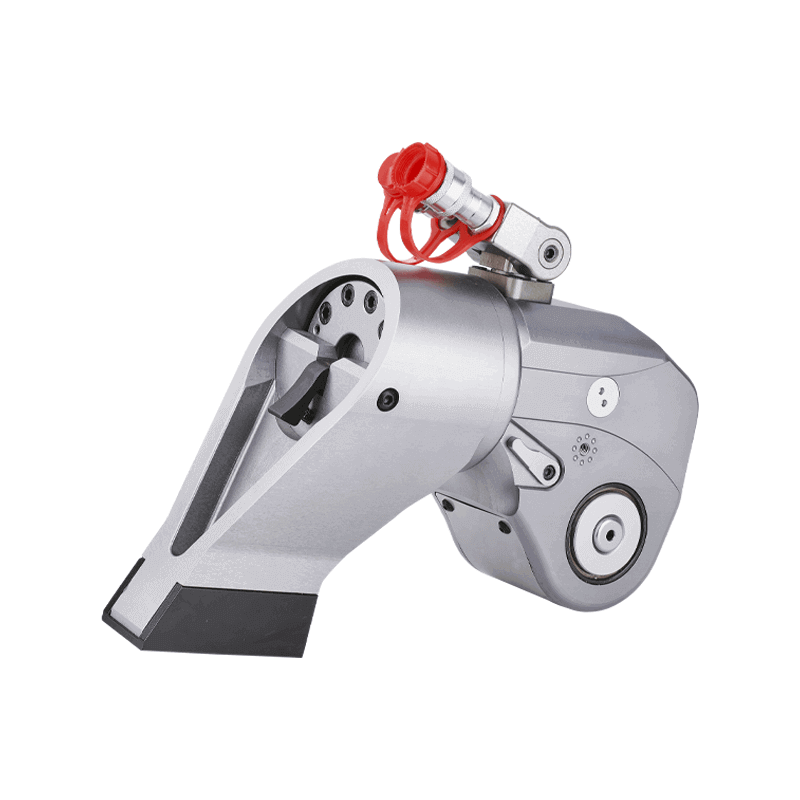

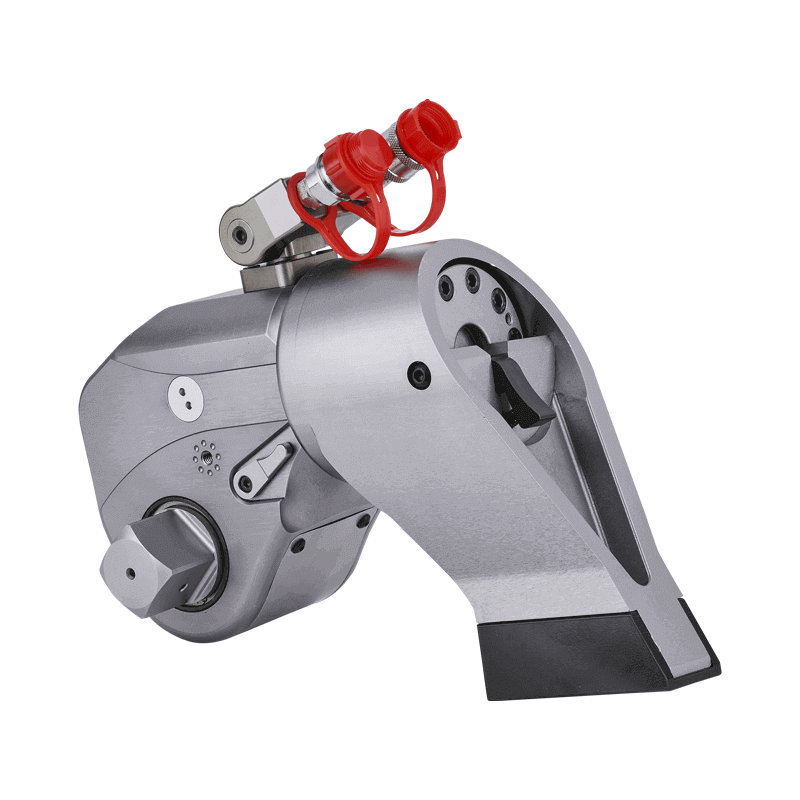

Square Drive Hydraulic Torque Wrench
Features
1.Compact, uni-body designed to give housing maximum strength with minimum weight. It was made of durable , high-strength, light weight aircraft alloy.
2.Dual rotation direction ( 360°X-axis * 180°Y-axis ) hydraulic swivel manifold, connect with screw quick couplings.

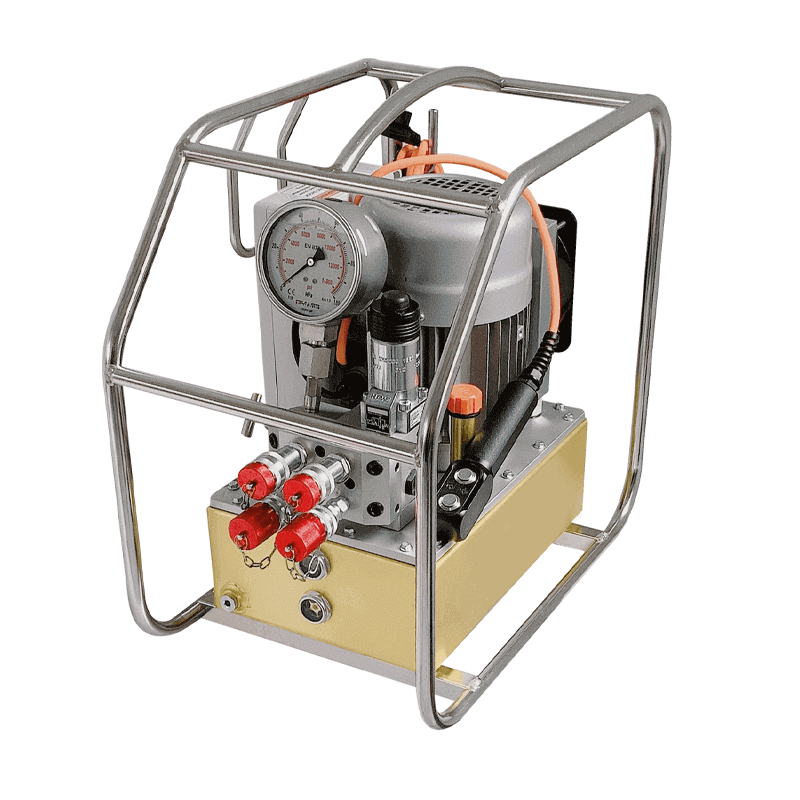

3.With automatic pump, square drive wrench could automatic to tighten or loosen .
4.Accurate anti- reverse pawl improved the preload accuracy, and could be quick released
5.Constant torque output accuracy up-to ±3%
6.High speed, double-acting operation
7.Oxidation treatment provide excllent corrosion protection and durability in harsh enviroment

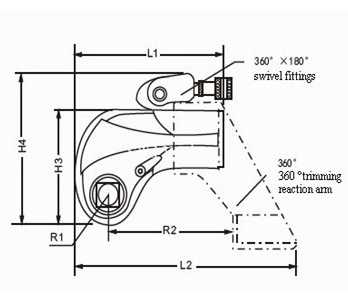

Drawings
| Model | 07BWT | 1BTW | 3BTW | 5BTW | 8BTW | 10BTW | 15BTW | 20BTW | 25BTW | 35BTW |
|---|---|---|---|---|---|---|---|---|---|---|
| Min Torque（Nm） | 112 | 183 | 451 | 752 | 1078 | 1551 | 2060 | 2666 | 3570 | 4860 |
| Max Torque （Nm） | 1120 | 1837 | 4512 | 7528 | 10780 | 15516 | 20627 | 26660 | 34720 | 48666 |
| Drive | 3/4＂ | 3/4＂ | 1＂ | 1-1/2＂ | 1-1/2＂ | 1-1/2＂ | 2-1/2＂ | 2-1/2＂ | 2-1/2＂ | 2-1/2＂ |
| L1(mm) | 110.8 | 130 | 170 | 202 | 228 | 237 | 273 | 287 | 323 | 351 |
| L2(mm) | 139.3 | 182 | 249 | 286 | 326 | 336 | 391 | 433 | 464 | 494 |
| H1(mm) | 42 | 52 | 70 | 81 | 90 | 100 | 110 | 120 | 138 | 153 |
| H2(mm) | 65.8 | 77 | 98 | 125 | 134 | 144 | 164 | 187 | 206 | 217 |
| H3(mm) | 76.2 | 96 | 127 | 149 | 172 | 181 | 206 | 221 | 258 | 279 |
| H4(mm) | 108.1 | 133 | 165 | 184 | 207 | 216 | 241 | 256 | 230 | 315 |
| H4(mm) | 20.5 | 25.8 | 34.8 | 39.8 | 46.8 | 50.8 | 56.8 | 59.8 | 70.8 | 76.8 |
| H4(mm) | 68.3 | 99 | 134 | 152 | 171 | 174 | 195 | 250 | 251 | 271 |
| Weight（Kg） | 1.8 | 2 | 4 | 7 | 9 | 13 | 18 | 25 | 31 | 45 |
FAQ
Q1. How about your quality?
A1: We promise to refund full payment in case of quality after get back products.
Q2: How about the warranty?
A2: 1 year warranty for all products.
Q3: If you have professional R&D team?
A3: Yes, we will offer technical supporting.
Q4: How about your service?
A4: 1) Boqun promised to reply every question within 10 hours.
2) 7*24 hours
Q5: If you show order process to us?
A5: Of course, we always offer order status to our every customer on time.
Q6: What is your payment terms?
A6: 1) 100% payment before production for small order
2) 30% deposit before produciton, 70% balance against BL copy.
Q7: How long your production time?
A7: 1) Ship goods within 1-2 working days for stock products
2) Ship goods within 3-4 working days for sample.
3) 7-15 working days for batch order.(Special orders will be discussed before payment).
