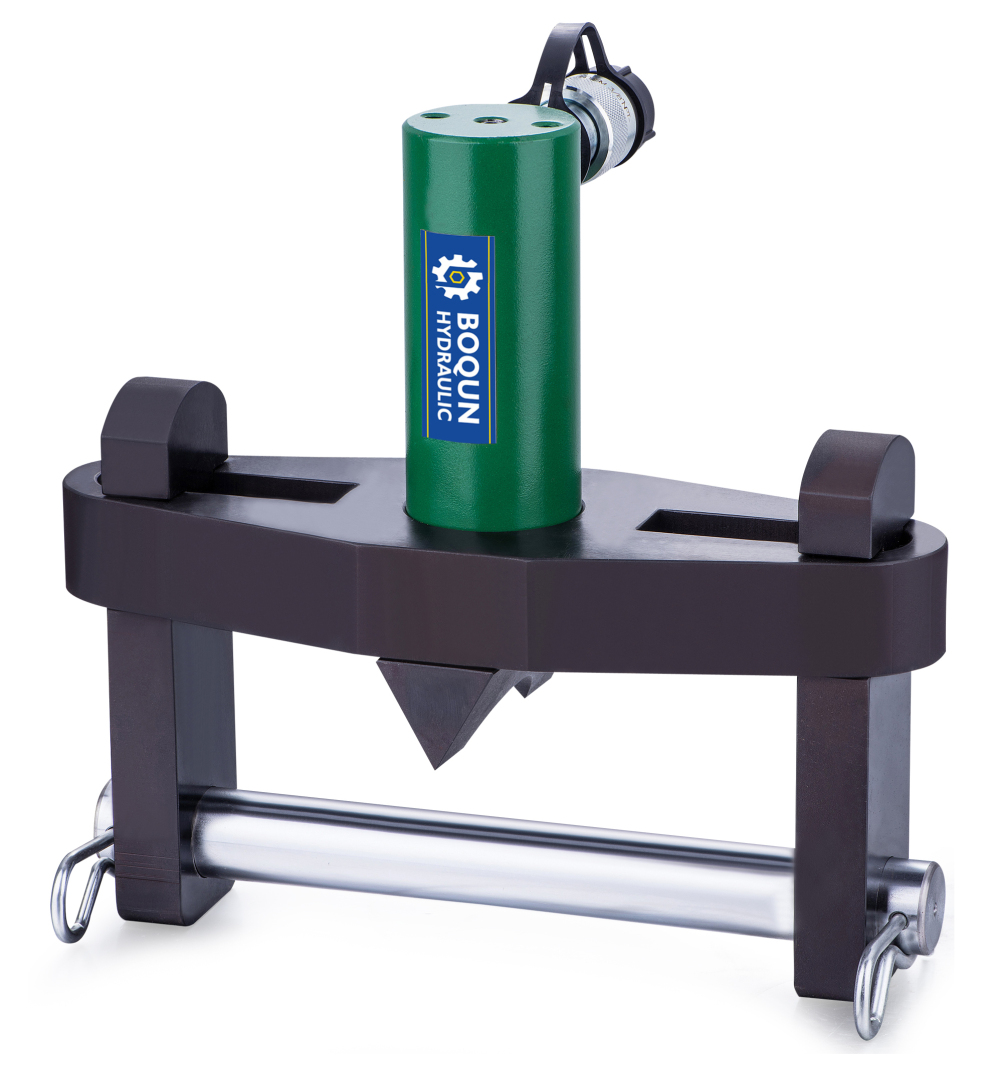

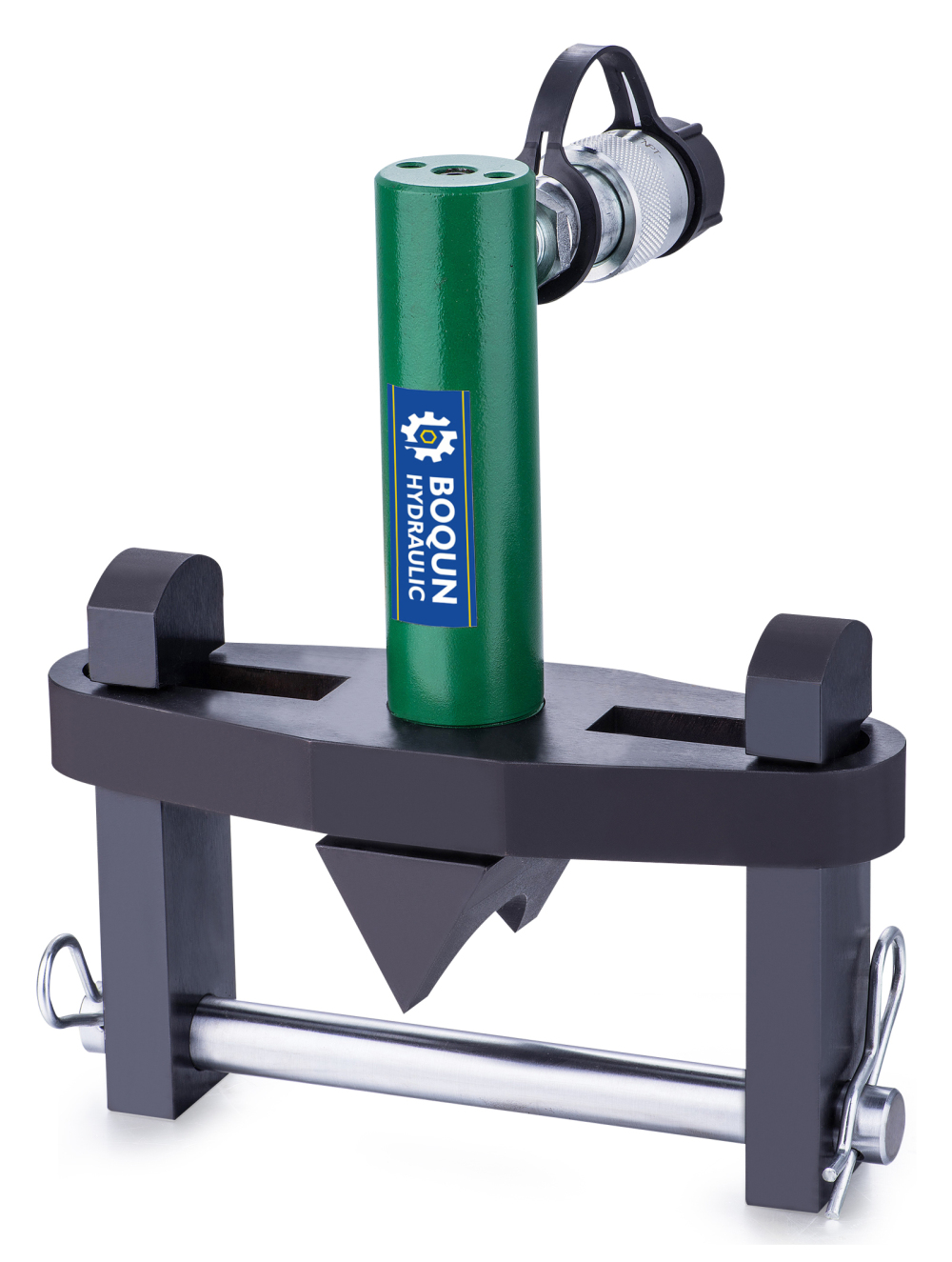

FS Flange Spreader
Features & Benefits
• Lightweight,ergon omic design for ease of use
• Adjustable jaw widths from 70 mm to 216 mm for a wide range of applications
• Single-acting, spring return RC-Series cylinders for fast trouble-free operation.

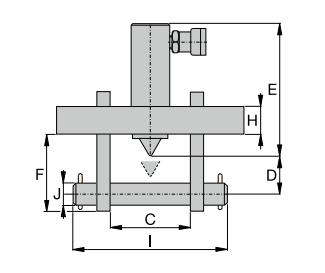

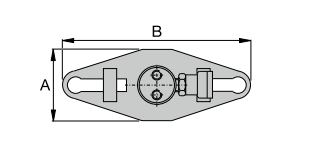

Maximum Flange Thickness | Stud Size | Standard Wedge | Capacity | Stroke | Model Number | Dimensions(mm) | Weight | |||||||||
C | D | E | F | H | I | J | ||||||||||
(mm) | (mm) | (mm) | Ton | (mm) | A | B | Min. | Max. | kg | |||||||
2x57 | 19-28 | 3-28 | 5 | 24.6 | FS-56 | 76 | 209 | 10 | 155 | 32 | 196 | 88 | 25 | 206 | 19 | 11.5 |
2x92 | 31-41 | 3-28 | 10 | 78.7 | FS-109 | 108 | 279 | 104 | 216 | 50 | 152 | 114 | 38 | 273 | 31 | 18.1 |
FAQ
Q1. How about your quality?
A1: We promise to refund full payment in case of quality after get back products.
Q2: How about the warranty?
A2: 1 year warranty for all products.
Q3: If you have professional R&D team?
A3: Yes, we will offer technical supporting.
Q4: How about your service?
A4: 1) Boqun promised to reply every question within 10 hours.
2) 7*24 hours
Q5: If you show order process to us?
A5: Of course, we always offer order status to our every customer on time.
Q6: What is your payment terms?
A6: 1) 100% payment before production for small order
2) 30% deposit before produciton, 70% balance against BL copy.
Q7: How long your production time?
A7: 1) Ship goods within 1-2 working days for stock products
2) Ship goods within 3-4 working days for sample.
3) 7-15 working days for batch order.(Special orders will be discussed before payment).
