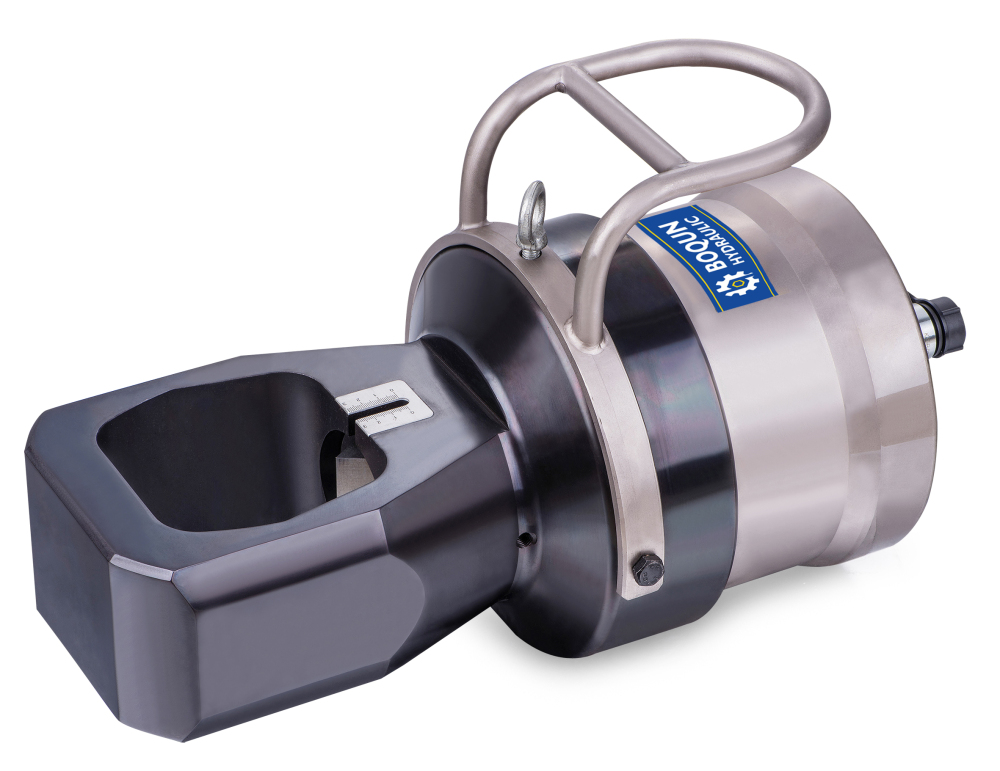

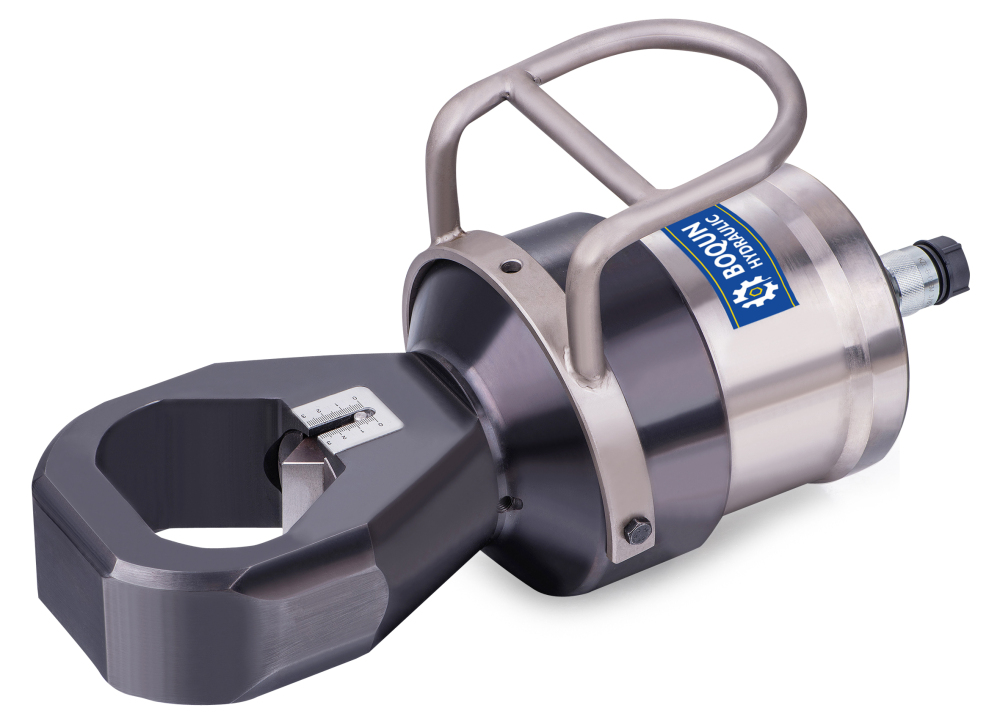

NS Nut Splitters
Features & Benefits
1.Specially designed to suit standard ANSI BI6.5 / BSI560 flanges.
2.Single-acting (spring return) or double-acting cylinder.
3.Tri-blade technology provides three cutting surfaces on a single blade.
4.Interchangeable heads provide maximum nut range flexibility.
5.Preset scale allows controlled blade extension,which avoids damage to bolt threads.
6.Grip tape and handle included for more secure manoeuvrability.
7.Nickel-plated cylinder body for excellent corrosion protection and improved durability in harsh environments.
8.Internal Pressure Relief Valve for overload protection.

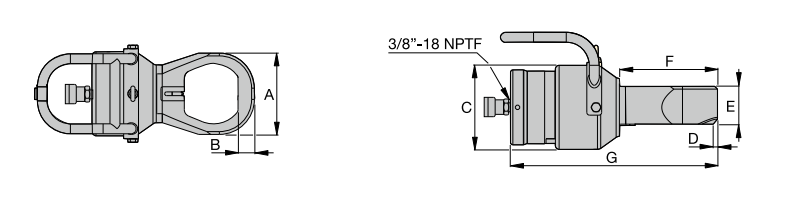

Bolt Range | Hexagon Nut Range | Capacity | Oil Capacity | Model Number | Dimensions (mm) | Weight | Hydraulic Cyliner | Cutting Head | Replacement Blade | ||||||
(mm) | (mm) | Ton(KN) | (cm³) | A | B | C | D | E | F | G | KG | ||||
M45-M52 | 70-80 | 103(917) | 377 | NS-7080 | 132 | 28 | 180 | 8.0 | 81 | 186 | 412 | 37.0 | NSC-70 | NSH-7080 | NSB-70 |
M45-M56 | 70-85 | 103(917) | 377 | NS-7085 | 145 | 30 | 180 | 8.0 | 81 | 196 | 422 | 37.0 | NSC-70 | NSH-7085 | NSB-70 |
M45-M64 | 70-95 | 103(917) | 377 | NS-7095 | 160 | 32 | 180 | 8.0 | 81 | 201 | 432 | 38.5 | NSC-70 | NSH-7095 | NSB-70 |
M45-M72 | 70-105 | 103(917) | 377 | NS-70105 | 174 | 35 | 180 | 9.0 | 81 | 209 | 443 | 39.5 | NSC-70 | NSH-70105 | NSB-70 |
M76-M80 | 110-115 | 193(1711) | 819 | NS-110115 | 189 | 36 | 234 | 3.7 | 111 | 234 | 472 | 69.0 | NSC-110 | NSH-110115 | NSB-110 |
M76-M90 | 110-130 | 193(1711) | 819 | NS-110130 | 219 | 41 | 234 | 2.5 | 111 | 242 | 493 | 71.5 | NSC-110 | NSH-110130 | NSB-110 |
FAQ
Q1. How about your quality?
A1: We promise to refund full payment in case of quality after get back products.
Q2: How about the warranty?
A2: 1 year warranty for all products.
Q3: If you have professional R&D team?
A3: Yes, we will offer technical supporting.
Q4: How about your service?
A4: 1) Boqun promised to reply every question within 10 hours.
2) 7*24 hours
Q5: If you show order process to us?
A5: Of course, we always offer order status to our every customer on time.
Q6: What is your payment terms?
A6: 1) 100% payment before production for small order
2) 30% deposit before produciton, 70% balance against BL copy.
Q7: How long your production time?
A7: 1) Ship goods within 1-2 working days for stock products
2) Ship goods within 3-4 working days for sample.
3) 7-15 working days for batch order.(Special orders will be discussed before payment).
