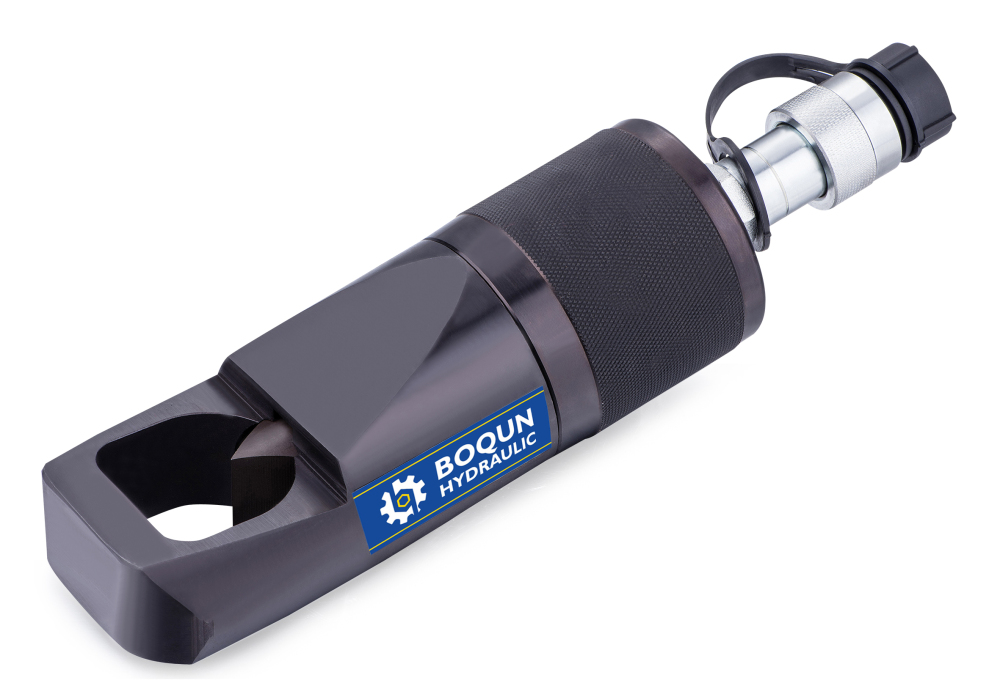

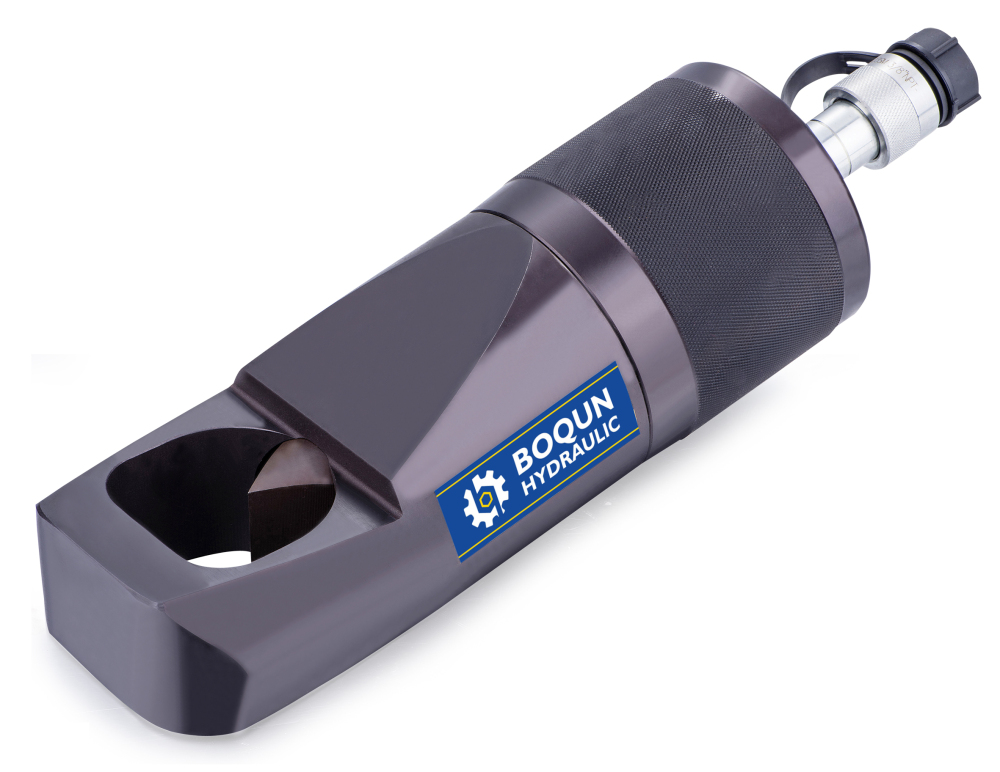

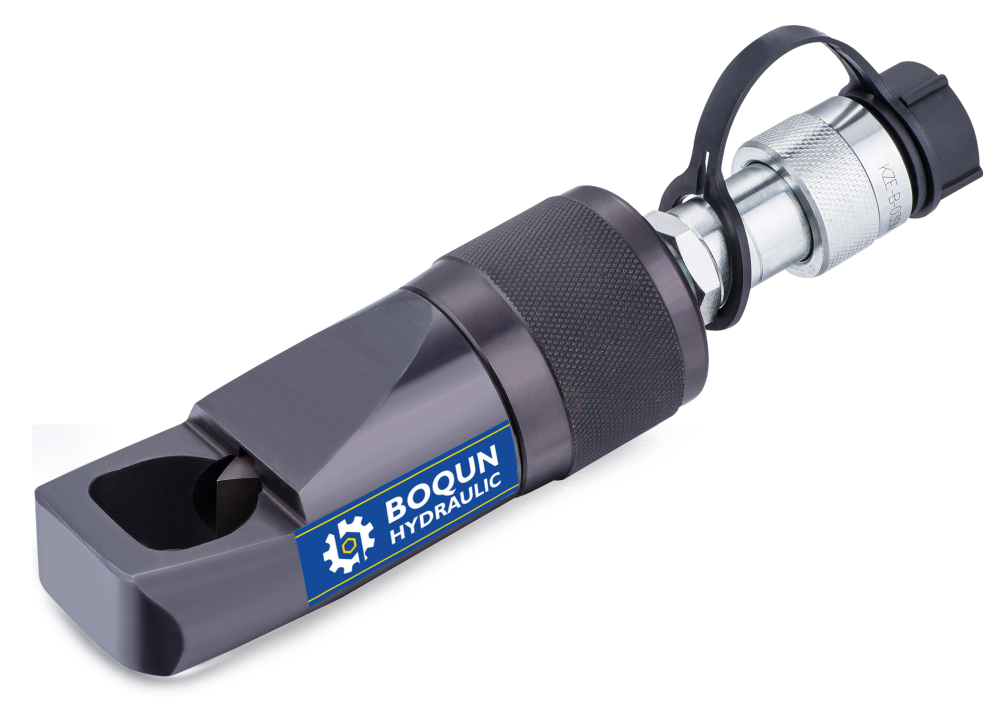

NC Nut Splitters
Features & Benefits
• Compact and ergon omic design, easy to use
• Unique angled head design
• Single-acting, spring return cylinder
・ Heavy duty chisels can be reground
・ Nut Splitters include spare chisel, spare set screw and wrench used to secure the chisel.
・ Applications include service trucks, piping industry, tank cleaning, petrochemical, steel construction, mining, etc.

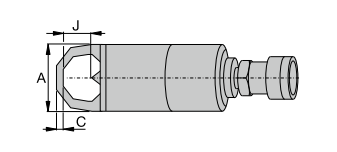

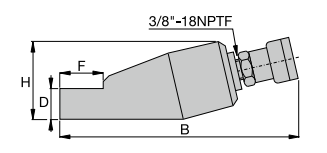

| Bolt Range | Hexagon Nut Range | Capacity | Oil Capacity | Model Number | Dimensions(mm) | Weight | Replacement Chisel Model Number | ||||||
| (mm) | ton(kN) | (cm³) | A | B | C | D | F | H | J | (kg) | |||
| M6-M12 | 10-19 | 5(49) | 15 | NC-1319 | 40 | 170 | 7 | 19 | 28 | 48 | 21 | 1.2 | NCB-1319 |
| M12-M16 | 19-24 | 10(98) | 20 | NC-1924 | 54 | 191 | 10 | 26 | 40 | 62 | 25 | 2.0 | NCB-1924 |
| M16-M22 | 24-32 | 15(147) | 60 | NC-2432 | 64 | 222 | 13 | 29 | 51 | 72 | 33 | 3.0 | NCB-2432 |
| M22-M27 | 32-41 | 20(196) | 80 | NC-3241 | 75 | 244 | 17 | 36 | 66 | 88 | 43 | 4.4 | NCB-3241 |
| M27-M33 | 41-50 | 35(343) | 155 | NC-4150 | 94 | 288 | 21 | 45 | 74 | 105 | 54 | 8.2 | NCB-4150 |
| M33-M39 | 50-60 | 50(490) | 240 | NC-5060 | 106 | 318 | 23 | 54 | 90 | 128 | 60 | 11.8 | NCB-5060 |
| M39-M48 | 60-75 | 90(882) | 492 | NC-6075 | 156 | 393 | 26 | 72 | 110 | 181 | 80 | 34.1 | NCB-6075 |
