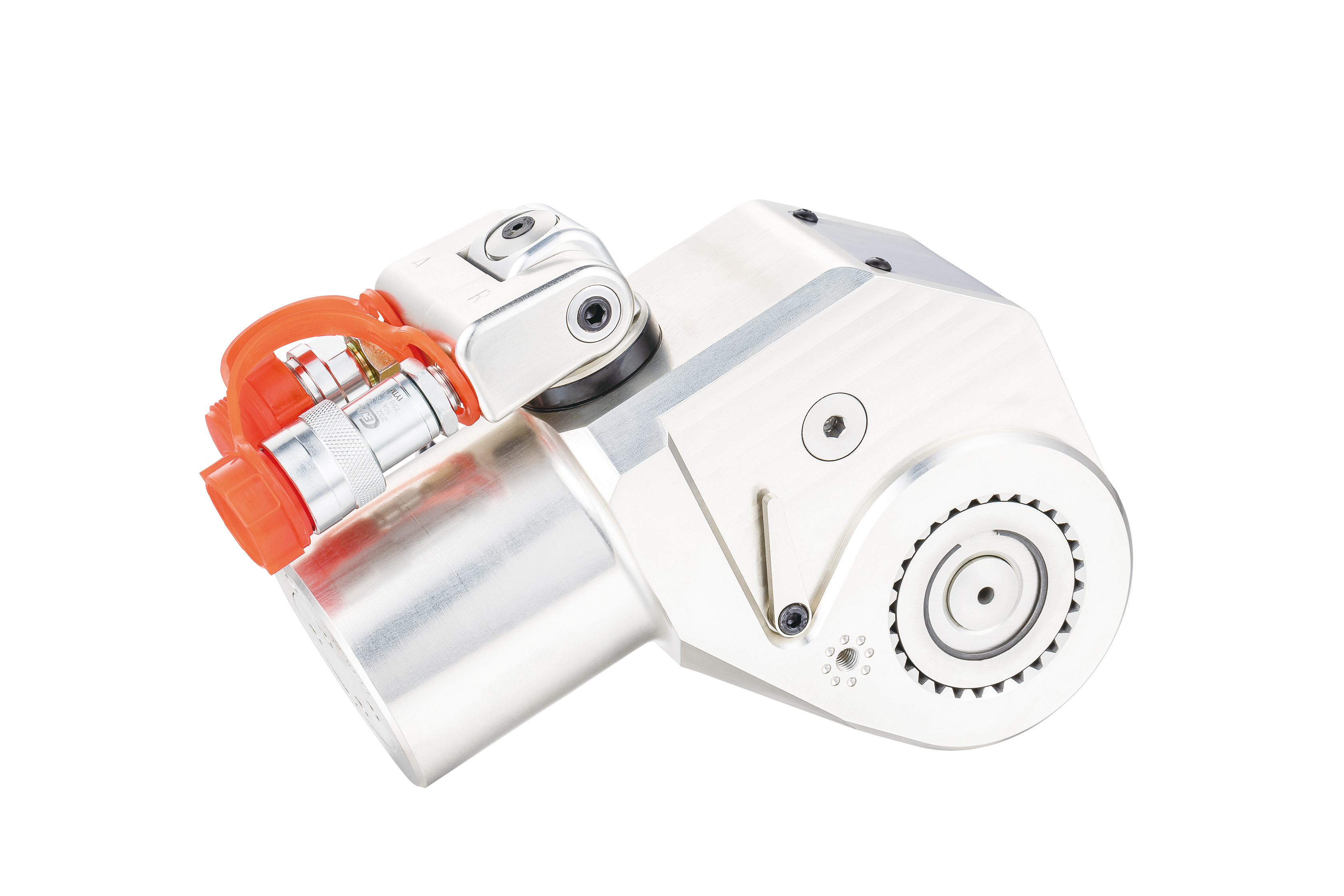

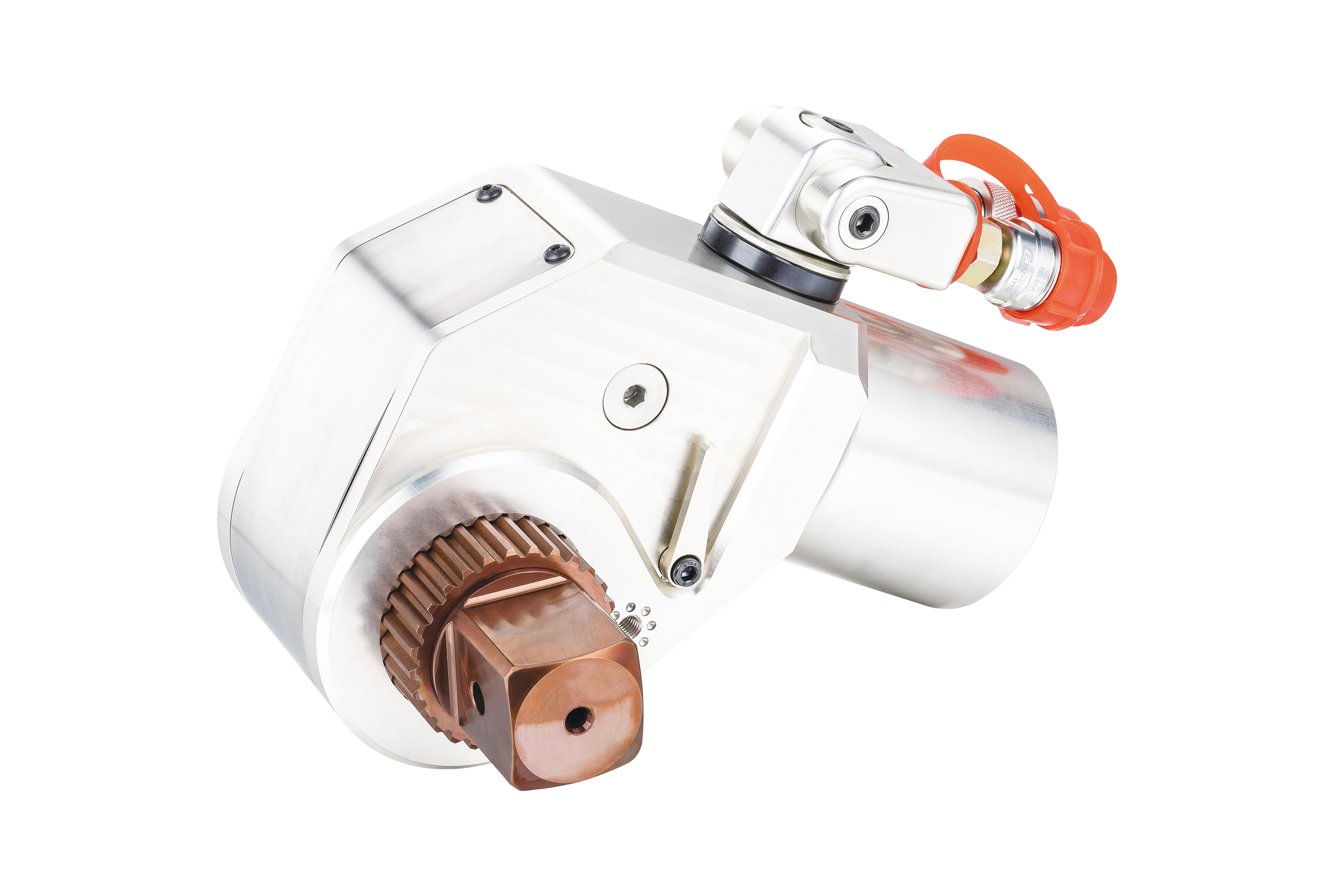

AVANTI HYDRAULIC WRENCH
Features
1, made of ultra-high strength alloy steel, one shaped body, small appearance
2, reaction arm and square drive coaxial unbiased load, small size, more suitable for small space
3, the reaction arm and the fuselage can be fine-tuned 360°
4, accurate check trigger, overcome the bolt torsion rebound, quickly improve the bolt fastening speed
5, 360° X180° rotary joint free operation, no space limitation
6, customized counter arm to ensure a wider range of use.

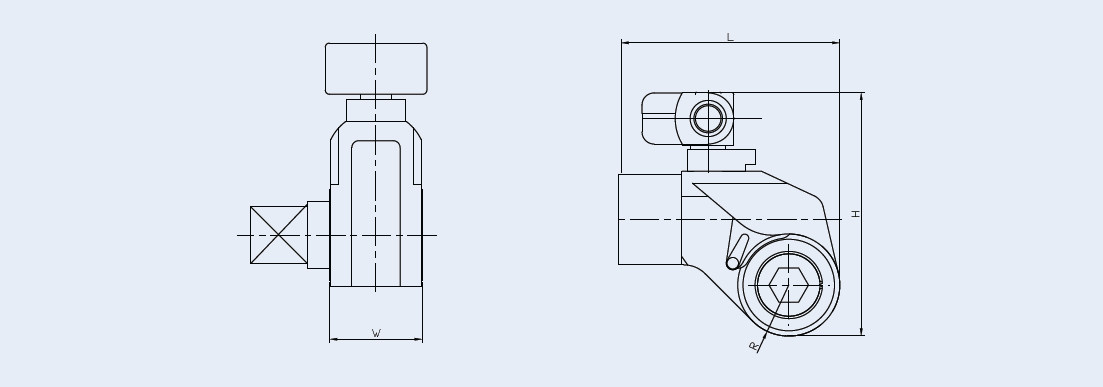

Model | Drive | R | L | H | W | Weight | Min Torque | Max Torque | Max Bolt Load |
mm | mm | mm | mm | Kg | Nm | Nm | KN | ||
AV-1TW | 3/4" | 28.6 | 127.9 | 124.9 | 55.2 | 2 | 261 | 1741 | 400 |
AV-3TW | 1" | 38.1 | 165.9 | 160.2 | 73.7 | 4.3 | 604 | 4025 | 787 |
AV-5TW | 1 1/2" | 47.2 | 199.5 | 188.2 | 85.9 | 7.1 | 1052 | 7416 | 1027 |
AV-8TW | 1 1/2" | 52.5 | 224.2 | 212.7 | 98 | 9.4 | 1578 | 10521 | 1450 |
AV-10TW | 1 1/2" | 60.3 | 252 | 236 | 110.5 | 13.3 | 2388 | 15921 | 1601 |
AV-20TW | 2 1/2" | 66 | 295.7 | 260.6 | 128.8 | 21.7 | 3742 | 24255 | 2513 |
FAQ
Q1. How about your quality?
A1: We promise to refund full payment in case of quality after get back products.
Q2: How about the warranty?
A2: 1 year warranty for all products.
Q3: If you have professional R&D team?
A3: Yes, we will offer technical supporting.
Q4: How about your service?
A4: 1) Boqun promised to reply every question within 10 hours.
2) 7*24 hours
Q5: If you show order process to us?
A5: Of course, we always offer order status to our every customer on time.
Q6: What is your payment terms?
A6: 1) 100% payment before production for small order
2) 30% deposit before produciton, 70% balance against BL copy.
Q7: How long your production time?
A7: 1) Ship goods within 1-2 working days for stock products
2) Ship goods within 3-4 working days for sample.
3) 7-15 working days for batch order.(Special orders will be discussed before payment).
