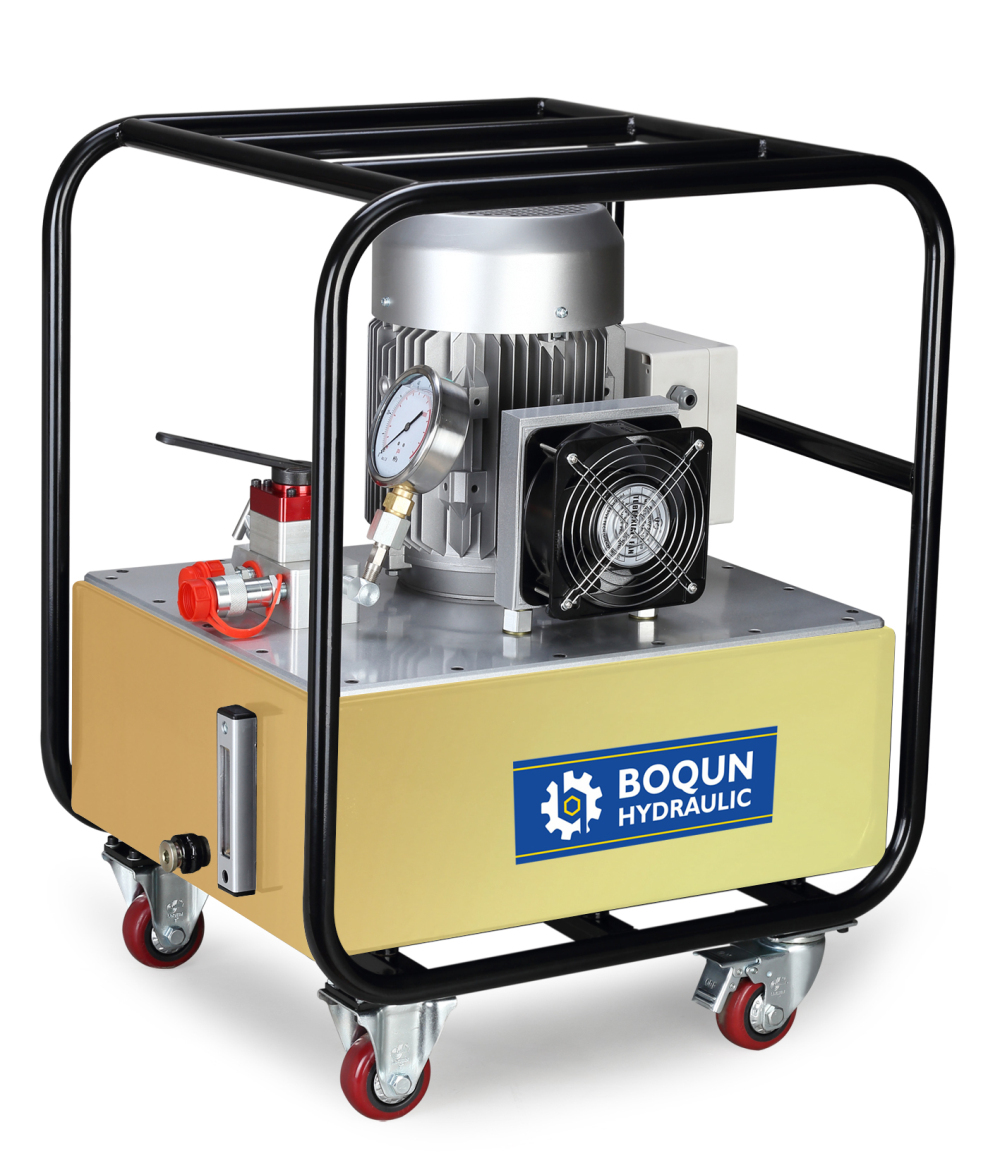

ZE25 Electric Hydraulic Pump
Features
1.Electric pump motor with light weight aluminum housing, and integrated heat sink for easy cooling.
2.lwo-speed design reduces cycle times for improved productivity.
3.Built-in safety valve to prevent overloading
4.Externally adjustable relief valve allows control of operating pressure without opening the pump
5.Oil tank cooler is optional, it could support pump long duration Sustained working.
6. Different flow control valve is avalilable to fit sepcial working requiement.
7. Compact, lightweight and durable aluminium frame protect the pump.
8.Suited to power medium size (double-acting & single-acting) cylinders or hydraulic tools.
9.Protection circuit is designed.
Model No. | Oil Flow (L/min) | Pressure (bar) | Power (KW) | Oil Capacity (L) | Input Power* | Weight(kg) | Dimensions(mm) | ||
High Pressure | Low Pressure | High Pressure | Low Pressure | ||||||
ZE4 | 0.22 | 3 | 700 | 40 | 0.37 | 4 | 110V-240V 1Ph 50HZ | 17 | 342*210*395 |
0.22 | 3 | 700 | 40 | 0.37 | 4 | 100-130V 1Ph 60HZ | 17 | 342*210*395 | |
ZE10 | 1 | 6.3 | 700 | 70 | 1.5 | 20 | 220V-440V 3Ph 50HZ | 46 | 565*385*620 |
1 | 7.5 | 700 | 70 | 1.5 | 20 | 200V-480V 3Ph 60HZ | 46 | 565*385*620 | |
ZE25 | 2.2 | 9.3 | 700 | 70 | 3 | 40 | 220V-440V 3Ph 50HZ | 66 | 605*525*790 |
2.2 | 8.6 | 700 | 70 | 3 | 40 | 200V-480V 3Ph 60HZ | 66 | 605*525*790 |
FAQ
Q1. How about your quality?
A1: We promise to refund full payment in case of quality after get back products.
Q2: How about the warranty?
A2: 1 year warranty for all products.
Q3: If you have professional R&D team?
A3: Yes, we will offer technical supporting.
Q4: How about your service?
A4: 1) Boqun promised to reply every question within 10 hours.
2) 7*24 hours
Q5: If you show order process to us?
A5: Of course, we always offer order status to our every customer on time.
Q6: What is your payment terms?
A6: 1) 100% payment before production for small order
2) 30% deposit before produciton, 70% balance against BL copy.
Q7: How long your production time?
A7: 1) Ship goods within 1-2 working days for stock products
2) Ship goods within 3-4 working days for sample.
3) 7-15 working days for batch order.(Special orders will be discussed before payment).
